ROUND CHIP LED
LM010 10W/3535
3535/3V/1000mA(4000mA),25D/Ra70/6000K
LM020 18W/5050
5050/3V/1000mA(6000mA),25D/Ra70/6000K
3535/3V/1000mA(4000mA),25D/Ra70/6000K
LM020 18W/5050
5050/3V/1000mA(6000mA),25D/Ra70/6000K
图片 PIC | 型号 MODEL | 功率(W) Power | 电流(A) Current | 色温(K) CCT | 光通量(lm) Flux | 发光尺寸 LES (mm) | 显指 Ra | 尺寸 Dimension （L*W*H)(mm) |

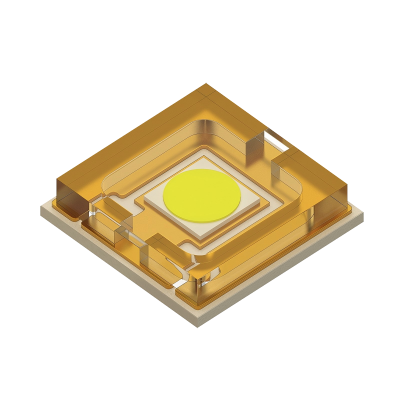

 | FL-LM010-60-3535 | 10 | 3.0 | 6,000 | 950 | Φ1.35 | 70 | 3.5*3.5*1.23 |
 | FL-LM020-60-5050 | 18 | 5.0 | 6,000 | 1,500 | Φ1.7 | 70 | 5.0*5.0*1.2 |
